Azure Event Hubs

An Azure event hub is a managed stream: producers write messages into it, the hub holds each message for a fixed retention period, and readers pull at their own pace. The Azure Event Hubs template makes Fluency one of those readers, writing what it reads from one hub into the data lake. What goes into the hub is configured on whatever writes to it; for Microsoft Entra ID's audit and sign-in logs, which have a template of their own, see Entra ID (AzureAD) Audit via Event Hubs.

Nothing is granted to Fluency inside your subscription: there is no application to register and no Azure role to assign. The only credential that leaves Azure is the connection string, and it reaches one event hub and can only read from it.

The setup has two halves:

1. In Azure: create a namespace and an event hub (or use existing ones), a consumer group and a Listen-only policy for Fluency, and optionally checkpoint storage.
2. In Fluency: install the Azure Event Hubs application template with the hub's Connection string–primary key.

What arrives

Stream	What it holds	Lands in
Hub messages	Whatever the hub's producers write, such as Azure Monitor resource logs or the subscription Activity Log, one event per record.	The index named on the install form, AzureEventHubs by default

The hub holds each message for its retention period, at most one day on Basic and seven on Standard, and a Fluency-side outage longer than that is permanent loss; see Retention: how long Fluency has to read. The parser drops Azure Firewall's legacy Azure Diagnostics categories and keeps its resource-specific AZFW… ones, so choose those in a firewall's diagnostic setting.

How records are timestamped, and retention by tier, are in Data reference; the parser's handling of each record is in Under the hood.

Before you begin

Contributor on an Azure subscription, to create the namespace and hub, or Contributor on the existing namespace, to add a consumer group and a policy to a hub that is already there. These are Azure RBAC roles, not Entra ID directory roles.

The namespace is billed for as long as it exists, per throughput unit per hour plus ingress, whether or not anything reads it. One Standard throughput unit is the starting point.

Network access from Fluency to the namespace. Fluency connects outbound to <namespace>.servicebus.windows.net. A namespace whose Networking page restricts public access has to admit it.

Access to the Fluency portal with permission to install applications.

Part 1: Azure

Performed in the Azure portal. If you would rather script it, skip to Automated alternative: Azure CLI.

Already have an event hub?

Skip to step 3. Before you do, check two things: the namespace's Pricing tier, on its Overview, since Basic allows no consumer group but $Default; and the hub's Message Retention, on the hub's Overview, since that is how long an outage Fluency can recover from.

1. Create the namespace

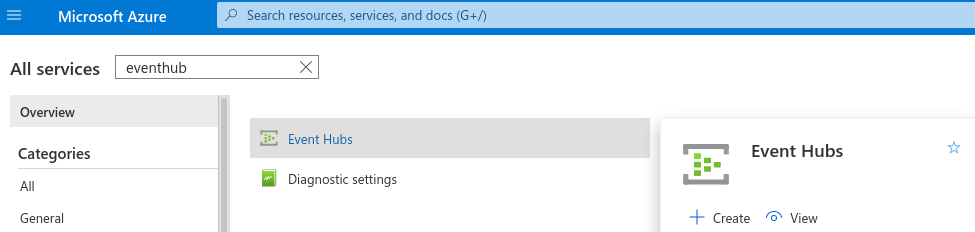

Search for Event Hubs and choose Create.

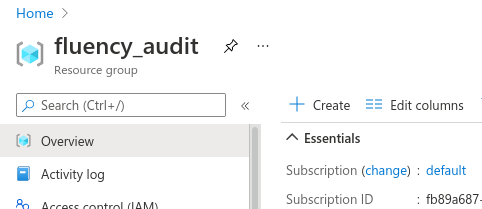

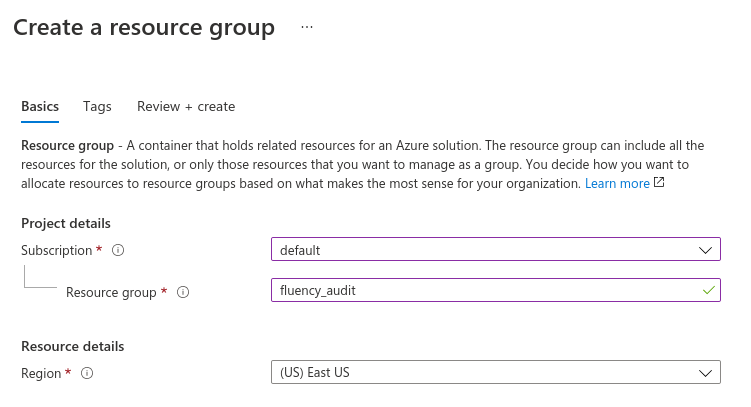

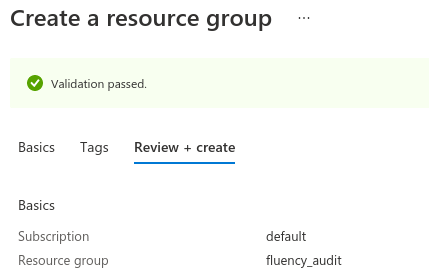

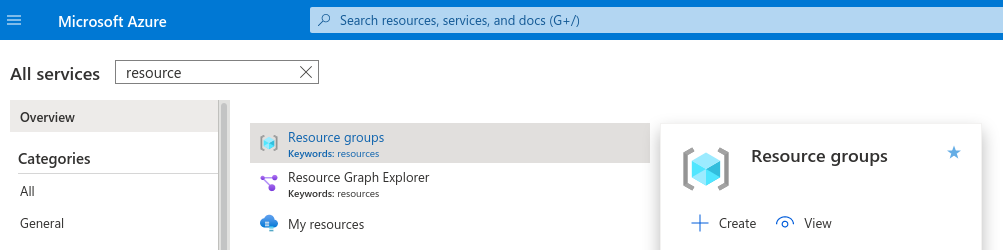

• Subscription and Resource group: Create new makes a resource group for the hub, so removing it later is one deletion.
• Namespace name: globally unique; it becomes <name>.servicebus.windows.net.
• Location: the region where the hub's producers run. Some producers insist on it: Azure Monitor diagnostic settings stream a regional resource only to a hub in the same region.

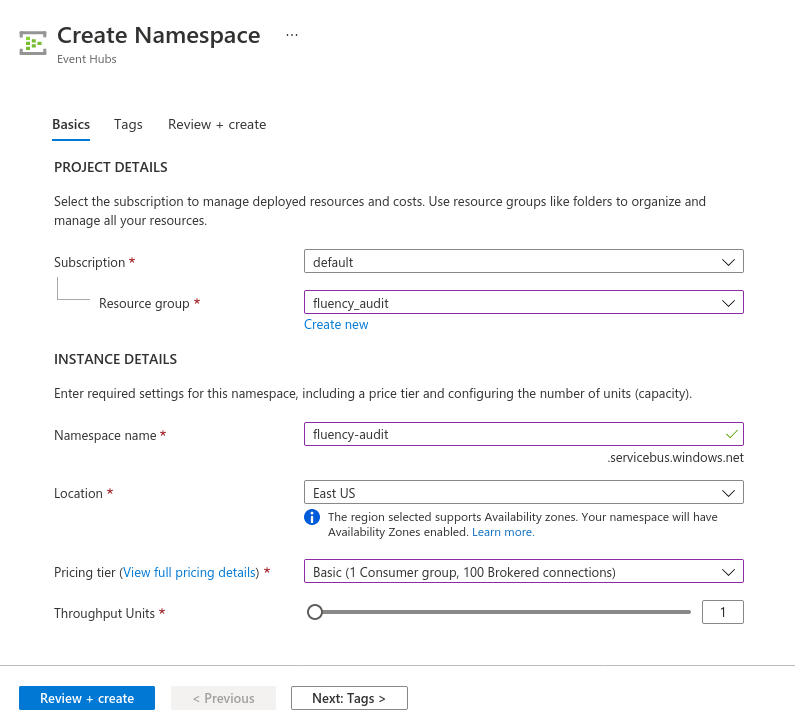

• Pricing tier: Standard. The capture below shows Basic, whose one-day retention and single consumer group are too little for this.
• Throughput Units: 1.

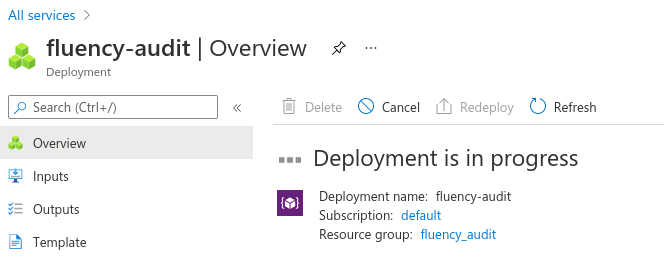

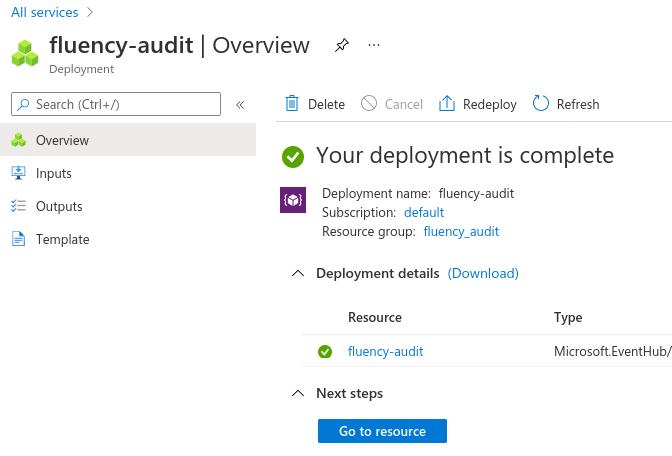

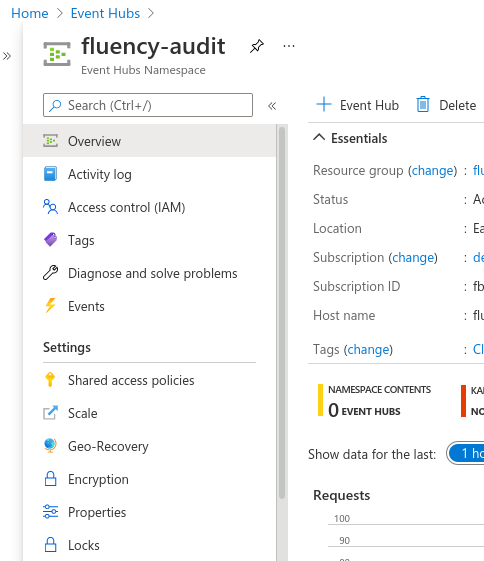

Choose Review + create, then Create, and wait for the deployment to complete. Go to resource opens the new namespace.

2. Create the event hub

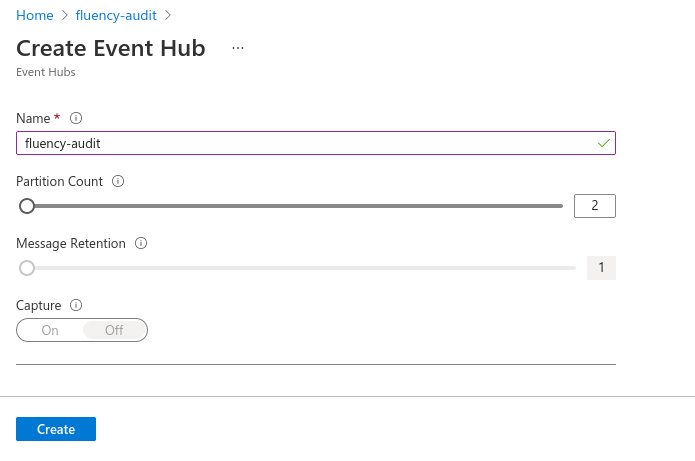

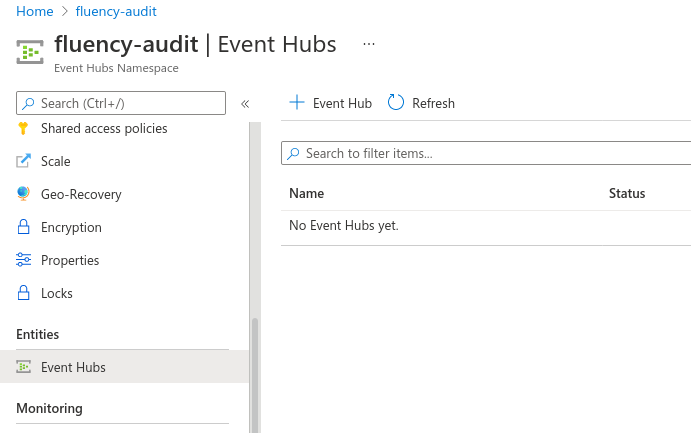

In the namespace, go to Entities → Event Hubs and choose + Event Hub.

• Name: anything recognisable. It becomes the EntityPath at the end of the connection string.
• Partition Count: 2 is enough for most uses. It cannot be changed after creation on Basic or Standard.
• Retention: the maximum the tier allows: seven days on Standard. (The capture is from a Basic namespace, where it is fixed at one day.)
• Capture: Off.

Choose Create.

3. Create a consumer group for Fluency

A consumer group is a named view of the hub that keeps its own reading position, independently of every other group. Each reader of a hub needs its own: two readers sharing one group compete for the same partitions, so each can miss messages or be disconnected by the other. A new hub is read through its built-in $Default group, which is fine while Fluency is the only reader, but anything else that reads the hub later, another SIEM or an Azure Function, would then be sharing it.

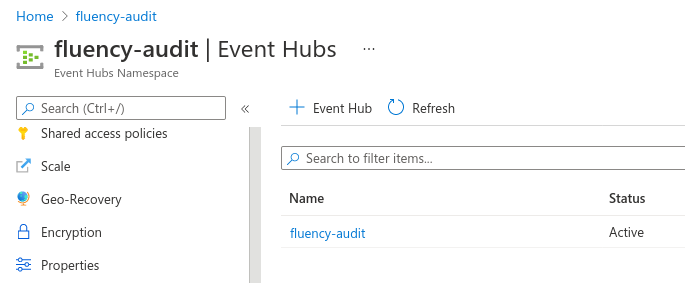

Open the hub from the namespace's Event Hubs list.

Go to Entities → Consumer groups, choose + Consumer group, name it (fluency, say) and choose Create. On a Basic namespace the button is greyed out, because Basic allows only $Default.

Record the name; it goes into the template's consumer group name parameter.

4. Create a Listen-only policy on the event hub

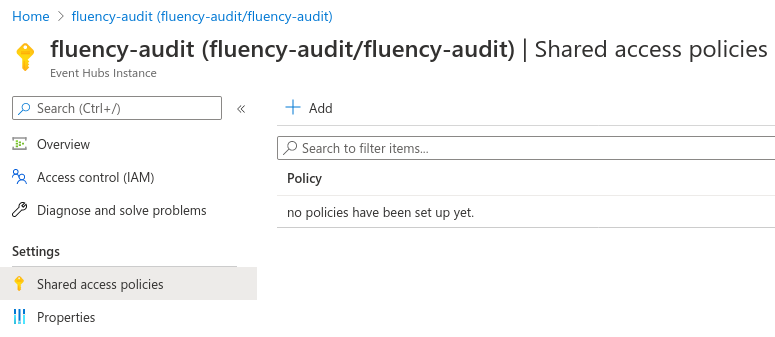

Still on the hub, go to Settings → Shared access policies and choose + Add.

Name the policy (fluency-listen, say), tick Listen and nothing else, and choose Create.

On the event hub, not the namespace

The namespace has a Shared access policies page too, and the two look almost identical. The sub-heading under the page title tells them apart: Event Hubs Instance is the hub, which is where this policy belongs; Event Hubs Namespace is the wrong page. A namespace policy's connection string lacks ;EntityPath=<hub name>, reaches every hub in the namespace, and, if it is the built-in RootManageSharedAccessKey, carries Manage rights over all of them.

5. Copy the connection string

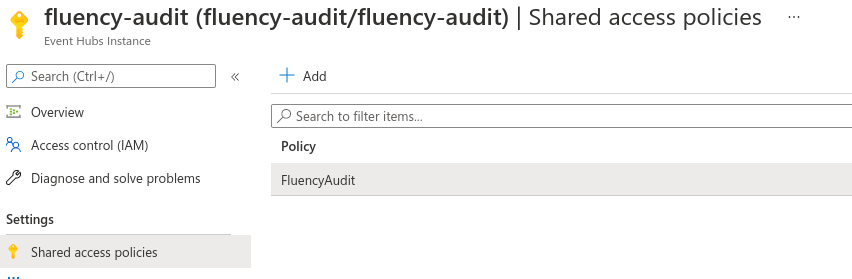

Select the policy. Of the four values in the panel, copy Connection string–primary key. It has this shape, and must end with the hub's name:

Endpoint=sb://<namespace>.servicebus.windows.net/;SharedAccessKeyName=fluency-listen;SharedAccessKey=<key>;EntityPath=<hub name>

The string carries the policy's key, so treat it as a credential. Unlike most secrets, though, it is not shown once: it can be read again from Shared access policies at any time, and replaced by regenerating the key.

6. Optional: set up checkpoint storage

Fluency can keep its reading position (a checkpoint per partition) in an Azure Storage container. With it, a restarted application resumes exactly where it stopped. Without it, a restart re-reads what the hub still holds, and the index gets duplicates. For a small hub that is a few repeated records; for a busy one, set it up.

1. Create a Storage account: general-purpose v2, Standard performance, in the namespace's region. Give it to Fluency alone: the connection string below carries the account key, which grants full access to the whole account.
2. In the account, go to Data storage → Containers, choose + Container, and name it (fluency-checkpoints, say).
3. Go to Security + networking → Access keys and copy the Connection string under key1.

You should now be holding:

Value	Where it came from	Template parameter
Connection string–primary key	The Listen policy on the event hub, step 5	Event Hub endpoint
Consumer group name	Step 3	consumer group name
Storage connection string (optional)	The storage account's Access keys, step 6	connection string to access the storage account container
Container name (optional)	Step 6	blob storage container for eventhub checkpoints

Automated alternative: Azure CLI

The same steps as Azure CLI commands. Run them signed in to the right subscription (az account show names it), and replace the names and location with your own. For a hub that already exists, set the variables to its names and start at the consumer group.

RG=fluency-eventhub-rg
NS=<globally-unique-namespace-name>
HUB=<event-hub-name>
LOCATION=eastus

# Steps 1–2: namespace and hub
az group create --name "$RG" --location "$LOCATION"

az eventhubs namespace create --resource-group "$RG" --name "$NS" \
  --location "$LOCATION" --sku Standard --capacity 1

az eventhubs eventhub create --resource-group "$RG" --namespace-name "$NS" \
  --name "$HUB" --partition-count 2 --cleanup-policy Delete --retention-time-in-hours 168

# Step 3: consumer group
az eventhubs eventhub consumer-group create --resource-group "$RG" \
  --namespace-name "$NS" --eventhub-name "$HUB" --name fluency

# Steps 4–5: Listen-only policy, and its Connection string–primary key
az eventhubs eventhub authorization-rule create --resource-group "$RG" \
  --namespace-name "$NS" --eventhub-name "$HUB" --name fluency-listen --rights Listen

az eventhubs eventhub authorization-rule keys list --resource-group "$RG" \
  --namespace-name "$NS" --eventhub-name "$HUB" --name fluency-listen \
  --query primaryConnectionString -o tsv

# Step 6 (optional): checkpoint storage
SA=<globally-unique-storage-account-name>
az storage account create --resource-group "$RG" --name "$SA" \
  --location "$LOCATION" --sku Standard_LRS --kind StorageV2

STORAGE_CS=$(az storage account show-connection-string --resource-group "$RG" \
  --name "$SA" --query connectionString -o tsv)
az storage container create --name fluency-checkpoints --connection-string "$STORAGE_CS"
echo "$STORAGE_CS"

Older Azure CLI releases do not accept --cleanup-policy and --retention-time-in-hours; on those, use --message-retention 7 instead. A subscription that has never used Event Hubs may need az provider register --namespace Microsoft.EventHub --wait first.

Part 2: Fluency

Install the Application

v2 interface

In the navigation rail, open Applications and click Install Application, then choose Azure Event Hubs from the Cloud Infrastructure (IaaS) category of the Application Catalog.

Classic v1 interface

Go to Platform → Applications → Install Application From Template and choose Azure Event Hubs from the Cloud Infrastructure (IaaS) category.

Parameter	Notes
Event Hub endpoint	The Connection string–primary key from step 5. Masked once the application is installed.
Description	Optional. An editable parameter of the template (in the v1 form, distinct from the read-only Description shown in its Application section).
connection string to access the storage account container	Optional, with the next one. The storage connection string from step 6. Masked once installed.
blob storage container for eventhub checkpoints	Optional. The container from step 6.
consumer group name	The consumer group from step 3. Left empty, the reader uses $Default. A name that does not exist on the hub collects nothing.
datalake	Pre-filled managed.
datalake index name	Pre-filled AzureEventHubs. Two applications writing to the same index name in the same lake will collide, and the second one aborts.

One application reads one hub. For a second hub, install the template again with its own instance name and its own datalake index name.

v2 interface

The last two sit in the collapsed Advanced configuration section below Configuration; click its heading to reach them. The instance name is the Instance name field in the form's Application section.

Click Dry run first to have the platform check the connection strings before anything is installed, then click Install Application. The Applications page opens with the notice Default is launching., and the new application is listed with a green Running badge once the pipeline is up.

Classic v1 interface

The last two sit in the collapsed Advanced Configurations row below the parameters; expand it to reach them. The instance name is the form's Name field.

Press Install. The application then appears in the Installed Applications view, where its badge reads Running once the pipeline is up.

Confirm it is running

v2 interface

The application is listed on Applications as Azure Event Hubs, with the display name Default beneath it. Running in green means the pipeline is up; a red Error badge means it aborted or reported errors in the last hour, and the details page shows the error message beneath the summary figures. Click its row to open the application details page, whose Actions card records every object the install created.

Classic v1 interface

The application appears under Installed Applications as Azure Event Hubs: Default. Running in green means the pipeline is up; Aborted in red means it stopped on an error, and its details panel (the blue eye button) carries the message. The panel's Actions list records every object the install created.

Running reports the pipeline, not the connection. Confirm on both sides:

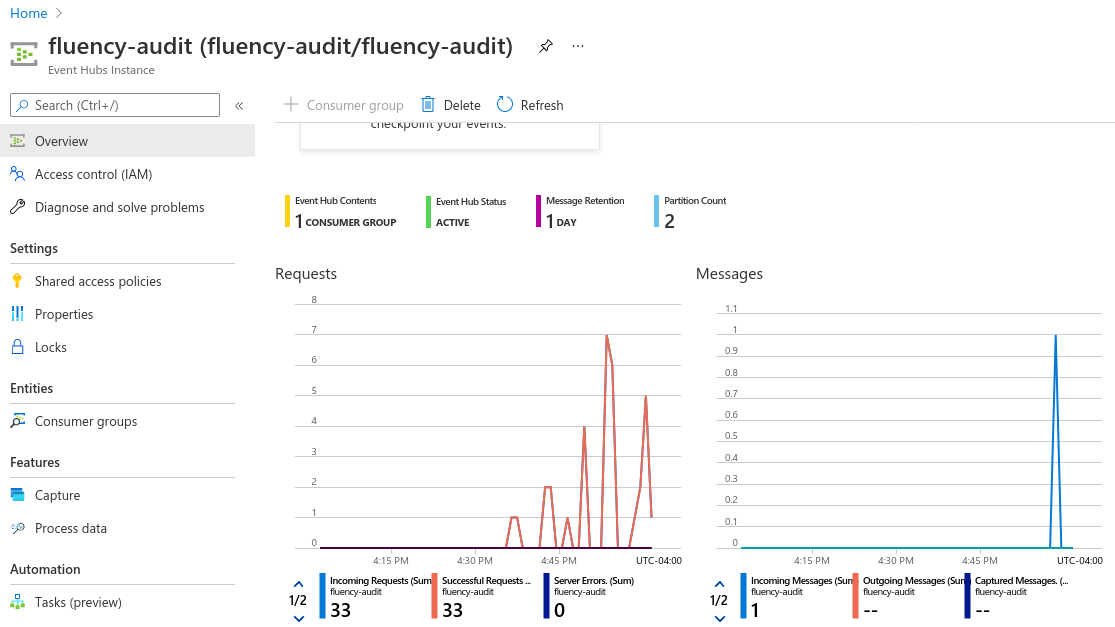

1. In Azure, open the hub's Overview page and watch the Messages chart. Incoming Messages counts what producers write; Outgoing Messages counts what readers take.



   Incoming	Outgoing	Meaning
   Zero	Zero	Nothing is writing to this hub, so there is nothing to read yet. That is the producer's configuration, not Fluency's.
   Rising	Zero	Messages are arriving and nothing is reading them. Check the connection string and the application.
   Rising	Rising	Something is reading: Fluency, if it is the hub's only reader.

   Outgoing counts every consumer group, so on a hub with other readers it rises whether or not Fluency is one of them. The index is the check that settles it.

2. In Fluency, search the index named on the install form for recent events. See Confirm data is arriving.

The install also creates an integration, AzureEventHubs-<name> (AzureEventHubs-default for a default install), which appears under Cloud Infrastructure (IaaS) on Configuration → Integrations (v1: Integrations → Existing Integrations). It is part of the application's pipeline: remove it by uninstalling the application, not by deleting it there.

Adding the connection without the template

v2 interface

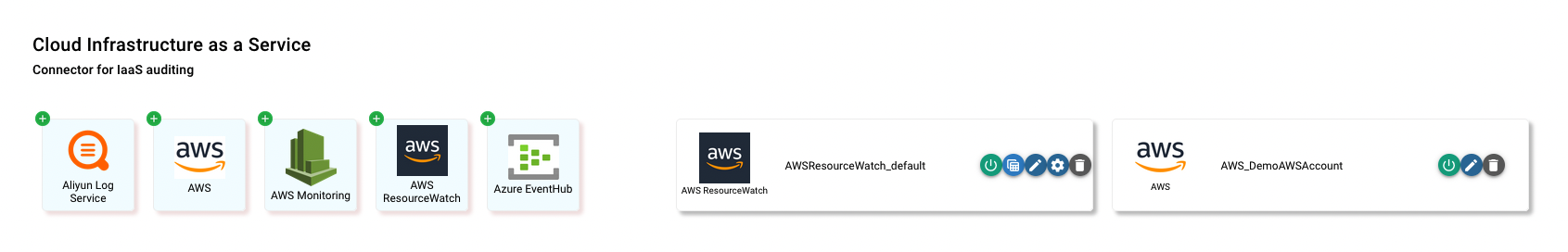

The same connection can be created on its own, on the Integrations page under Configuration: click + Create Integration and choose the Azure EventHubs tile in the Cloud Infrastructure (IaaS) category.

The Add Azure EventHubs panel opens.

This builds the connection (and, with Create Plugin Datasource switched on, its data source) but no parser and no index. It is for a pipeline built by hand on Processors, under Configuration. For anything else, install the template, which builds the whole pipeline.

Classic v1 interface

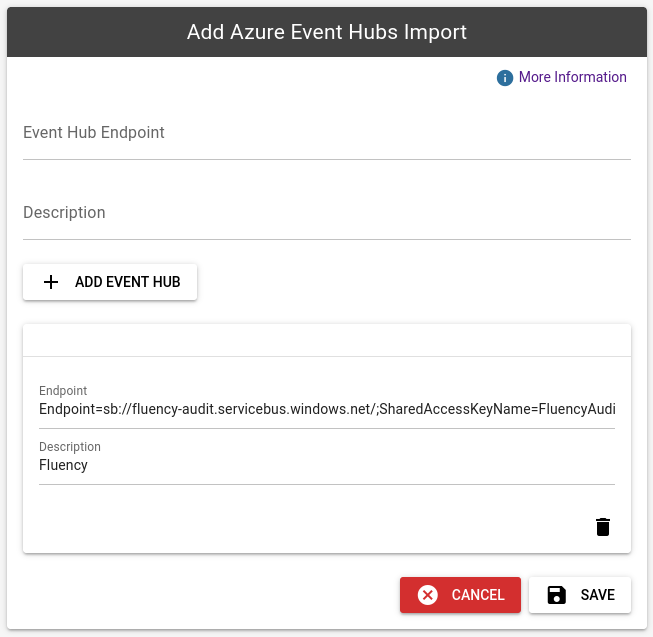

The same connection can be created on its own, on the Integrations page under New Integration, from the Azure EventHubs tile in the Cloud Infrastructure (IaaS) card.

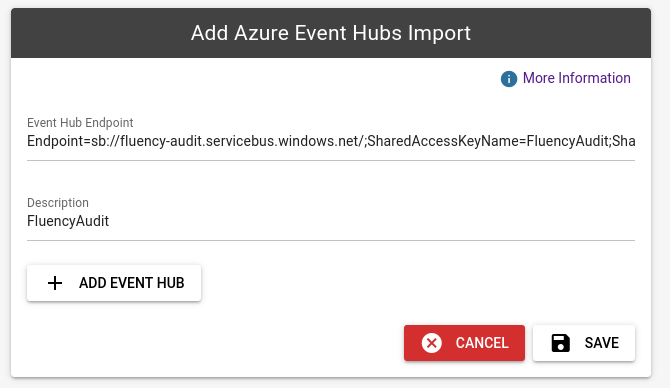

Its Add Azure EventHubs dialog takes the template's five settings under different labels:

Add Azure EventHubs	Template parameter
Endpoint	Event Hub endpoint
Description (under Configurations)	Description
Consumer Group	consumer group name
Container Name	blob storage container for eventhub checkpoints
Storage Endpoint	connection string to access the storage account container

This builds the connection to one hub (and, with Create Plugin Datasource ticked, its data source) but no parser and no index. It is for a pipeline built by hand on Platform → Processors. For anything else, install the template, which builds the whole pipeline. New Integration describes the dialog itself.

Maintenance

Rotating the key

Every shared access policy has two keys, which makes an overlap possible: reinstall the application with the policy's Connection string–secondary key, and once data is flowing again, regenerate the primary key in Azure. Template parameters are read-only after install, so a new value means uninstall and reinstall. To uninstall, click Uninstall at the top right of the application's details page (v1: the red Uninstall button at the foot of its details panel on Platform → Applications). Keep the gap shorter than the hub's retention and nothing is lost; with checkpoint storage configured, the reinstalled application resumes from the stored position. Rotating the Key has the full procedure.

The storage account key rotates the same way: reinstall with the connection string for key2, then regenerate key1.

Removing the integration

1. Uninstall the application in Fluency, with the Uninstall button at the top right of its details page (v1: the red Uninstall button at the foot of its details panel on Platform → Applications).
2. Delete the fluency-listen policy and the fluency consumer group from the hub, and the checkpoint storage account if you made one.
3. If the hub existed only for Fluency, stop whatever writes to it, then delete the namespace (or the whole resource group) to stop the hourly charge.

Troubleshooting

Symptom	Likely cause	Fix
Incoming rises, Outgoing stays at zero	Fluency is not reading	Check that the connection string ends in ;EntityPath= and this hub's name, that the consumer group named on the form exists on the hub, and that the application is Running.
The connection string has no EntityPath	The policy was created on the namespace	Create a Listen-only policy on the event hub (step 4) and reinstall with its string.
The application is Running and collects nothing	The consumer group name does not exist on this hub, or the hub has no incoming messages	Compare the name with Entities → Consumer groups on the hub, and reinstall with the right one. Check Incoming Messages on the hub's Overview.
Fluency or another reader of the hub misses messages, or keeps being disconnected	Two readers are sharing one consumer group, usually $Default	Give Fluency its own consumer group (step 3) and reinstall with its name. On a Basic namespace, which has only $Default, move to Standard.
Duplicate records after the application restarts	No checkpoint storage, so the reader re-reads what the hub still holds	Set up checkpoint storage (step 6) and reinstall with it.
A second Azure Event Hubs application aborts on install	Its datalake index name is already in use by the first	Reinstall with a different index name.
Incoming Messages stays at zero	Nothing is writing to the hub	Check the producer's configuration: that it names this namespace and this hub. Azure Monitor diagnostic settings, for one, create hubs of their own named insights-… when no hub name is given.
Throttled requests on the hub's Overview, and collection falls behind	The namespace has too few throughput units for the volume	Add throughput units, or enable Auto-inflate on a Standard namespace.
The application cannot connect, and the namespace's Networking restricts public access	Fluency cannot reach the namespace	Allow Fluency's connection through the namespace's network rules.
A gap after a Fluency-side outage	The outage outlasted the hub's retention	Unrecoverable through the hub. Standard retains up to seven days; Basic one.

Data reference

How records land in the index, and how long the hub keeps them for Fluency to read.

How records land

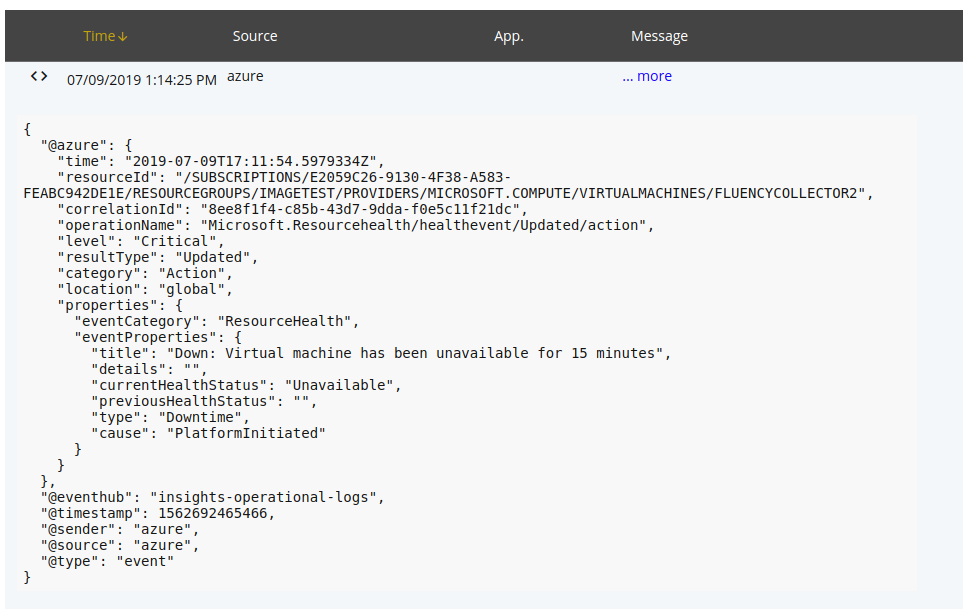

Whatever the hub's producers write, Fluency reads. Each record lands as one event in the AzureEventHubs index, under @azure, timestamped from its time field (the field Azure services write) or with its arrival time where it has none. Reading takes nothing out of the hub: other readers in other consumer groups see the same messages.

Retention: how long Fluency has to read

The hub holds each message for its retention period whether or not anyone reads it, and an unread message is gone once that period passes. The retention is therefore the length of Fluency-side outage the integration survives: a stopped application, a regenerated key, a deleted policy. The tier sets the ceiling:

Event Hubs tier	Maximum retention	Consumer groups per hub
Basic	1 day	$Default only
Standard	7 days	Up to 20

The Premium and Dedicated tiers retain for up to 90 days. Use Standard at least, and set the hub's retention to the most the tier allows. Event Streams covers retention, consumer groups and checkpoints in more depth.

Under the hood

Engineering reference: what the install builds and the parser

What the install builds

An integration and a plugin data source named AzureEventHubs-<name>, a router holding one pipe that runs the Azure-EventHubs-Adjustments parser, a data sink into the chosen lake and index, and the index itself. The connection string and the storage connection string are stored as secrets on the integration. The Actions list in the application's details panel is the authoritative record of what your install created.

The parser

The AzureEventHubs_Adjustments processor is written for the record format Azure services write into event hubs (JSON with time, category, operationName, resourceId and properties) and handles each record under @azure:

• Timestamp: @timestamp comes from the record's time. For RiskyUsers records, and records with no time, it is the arrival time instead.
• Dropped categories: AzureFirewallApplicationRule, AzureFirewallNetworkRule and AzureFirewallDnsProxy, Azure Firewall's legacy Azure Diagnostics categories, are discarded. Azure Firewall's resource-specific AZFW… categories are kept.
• Geolocation: the caller address of Key Vault AuditEvent and Storage StorageRead / StorageWrite records (callerIpAddress, with any port stripped and the original kept in callerIpAddressOriginal), and of SQL SQLSecurityAuditEvents (properties.client_ip), is copied to @normalized.source_ip, with its geolocation in @normalized.src_geo.
• Labels: every record gets @eventType: AzureEventHubs, @event_type: azure, @sender: azure, @source: eventhubs, and the installed integration's name in @integration.

How records are spread across partitions is up to the producer, and their order across partitions is not guaranteed; sort on time, not on arrival.
